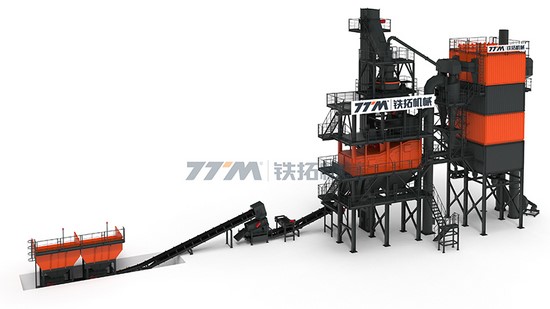

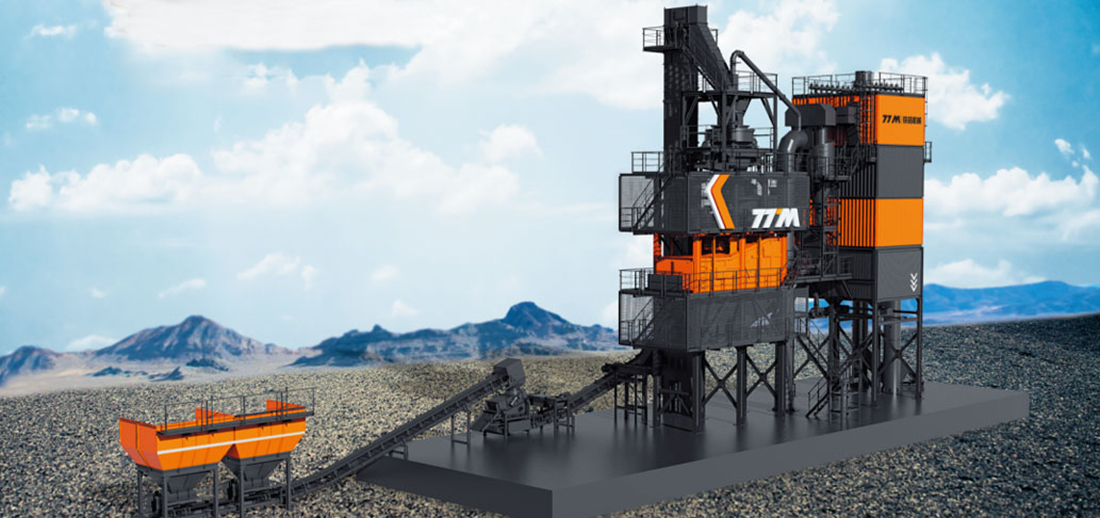

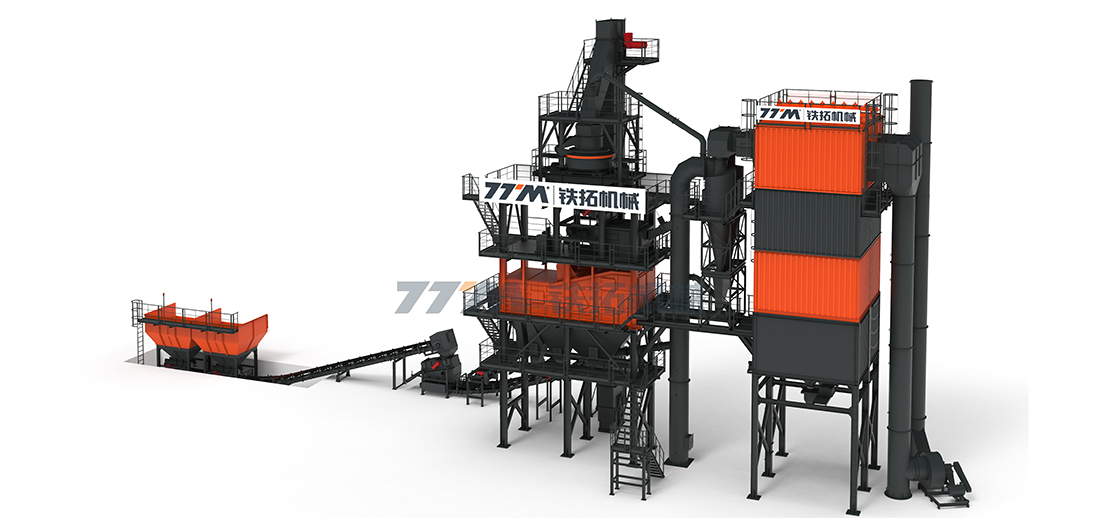

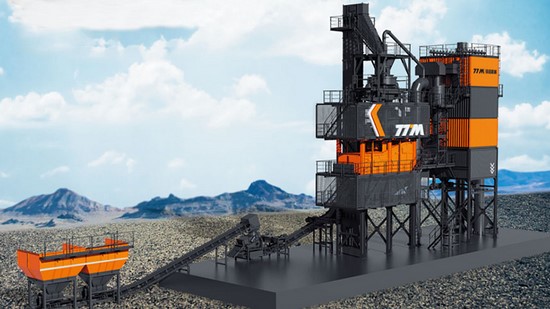

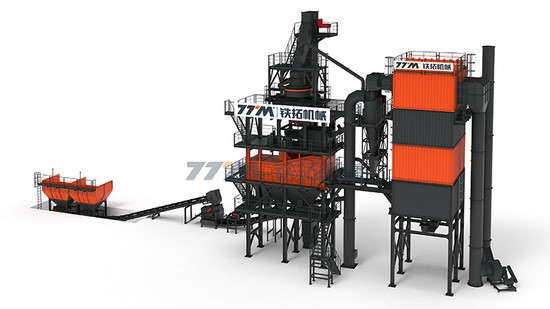

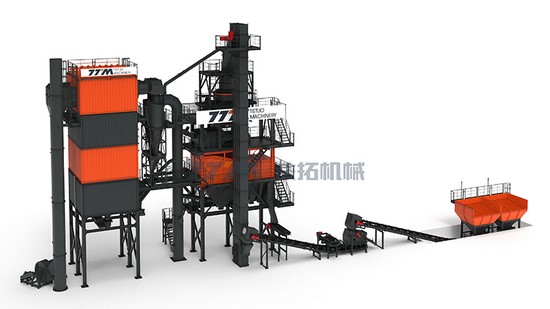

VS series sand making plant is a modular system for producing high quality sand and cubical shaped aggregates. With a fully enclosed structure, this sand making plant combines functions of aggregate shaping, gradation optimization, sand production, water content control and environmental treatment. It can be used with continuous and batch type asphalt mixing plant to improve the quality of finished asphalt, reduce the waste of aggregates while enhancing the production efficiency. Besides, this sand plant is also a perfect solution to provide the manufactured sand rivaling the natural sand for manufacturing concrete and dry mixed mortar.
| Model | | |
| Capacity (t/h) | 240~280 | 300~340 |
| Cold feed system | ||
| Number of feed hopper | 2 | 2 |
| Volume of single hopper (m³) | 15 | 15 |
| Aggregate elevator | ||
| Aggregate elevator type | Bucket elevator with single-row slat chain | Bucket elevator with single-row slat chain |
| VSI crushing & air classification system | ||
| Capacity of VSI crusher | 240~280 | 300~340 |
| Vibratory feeder | 280t/h | 340t/h |
| Gravity dust collector | 9700m3/h | 9700m3/h |
| Aggregate screening system | ||
| Vibrating screen model (linear motion) | AS2050 | AS2260 |
| Number of screen mesh layer | 4~6 | 4~5 |
| Dust collection & storage system | ||
| Number of aggregate storage bin | 4~6 | |
| Dust collector for fine aggregates | Two V-separators | |
| Dust collection & storage system for fine materials | Twin cyclone dust collector + offline pulse jet baghouse dust collector | |
| Single-stage dust collector | Twin cyclone dust collector | Twin cyclone dust collector |
| Filtering area of baghouse (m²) | 820 | 820 |
| Flow rate of induced draft fan (m³/h) | 50000 | 50000 |
| Storage bin structure for fine aggregates | Two shipping containers with stacked structure | Two shipping containers with stacked structure |
| Volume of fine aggregate bin (m³) | 2×65 | 2×65 |
| Discharging method of fine aggregate bin | Bulkhead, negative pressure dust absorbing | Bulkhead, negative pressure dust absorbing |
| Total power (kW) | 2×200=400 | 2×250=500 |
